Agilent / HP / Keysight E4401B

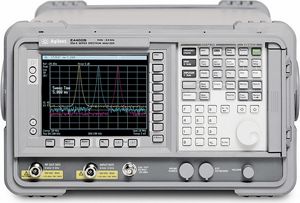

E4401B ESA-E Spectrum Analyzer, 9 kHz to 1.5 GHz
Description
The ESA-E Series is the Agilent mid-performance spectrum analyzer solution for the future.
The series sets the performance standards in measurement speed, dynamic range, accuracy, and resolving power for similarly priced products.
Its flexible platform design enables R&D, manufacturing, and field service engineers to customize the product to meet specific testing needs and to upgrade the product with new features when required.
Key Points
Expandable architecture
Broad frequency coverage
Choice of electronic or mechanical attenuator
Superior level accuracy
Wideband FM and ?M
Step sweep (frequency, power and list)
Built-in function generator
Lightweight, rack-mountable Noise Figure Measurement Personality
Remotely view and control the ESA over the Internet
8590-series programming code compatibility
HP 8566/68B programming code compatibility
ESA-E series measurement solutions
Fault location, phase noise, and CATV service measurement personalities
Rugged and portable for lab grade performance in the field
Segmented sweep for up to 32 discontinuous spans in one sweep
One-millisecond RF sweep time, 50 measurements per second
Rugged lab grade performance for the field
±1dB overall amplitude accuracy
Optional 1Hz digital resolution bandwidth filter and preamplifier
-166dBm sensitivity with preamp, +13.5 dBm TOI
Variable sweep (trace points) from 2 to 8192
Specifications
Input Power Level: -166dBm (DANL @ 1Hz RBW) to +30dBm
Frequency Range:
50 ohm: 9 kHz to 1.5 GHz
75 ohm : 1 MHz to 1.5 GHz
Input Impedance: 50 ohms
Resolution Bandwidth: 1KHz to 5MHz
Video Bandwidth: 30Hz to 3MHz
Maximum safe input level: +30 dBm (1 W)
Peak pulse power: +30 dBm (1 W)
RF input VSWR: 1 MHz to 1.1 GHz - 1.35:1; 1.1 GHz to 1.5 GHz - 2:1
Operating Temperature: 0 °C to + 55 °C
Storage Temperature: -40 °C to + 75 °C
Weight: 13.2 kg (29.1 lbs.)
Dimensions(max.): 222mm(H) x 516mm(D) x 408mm(W)
