Agilent / HP / Keysight DSO81204B

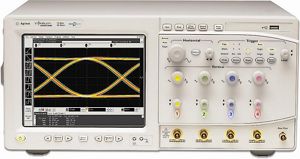

DSO81204B Infiniium High Performance Oscilloscope: 12 GHz

Please help us customize your browsing experience, by selecting one the below.

Description

This Oscilloscope foundational capabilities are crucial for achieving accurate and repeatable measurements.

These superior signal integrity capabilities come from Agilent's RF design experience, proprietary packaging technologies and unique CMOS ADC architecture.

Superior signal integrity maximizes engineer's design margins by not wasting any measurement accuracy due to the poor noise, jitter or frequency response of the scope or probing system.

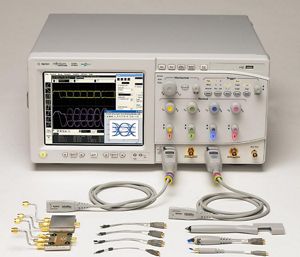

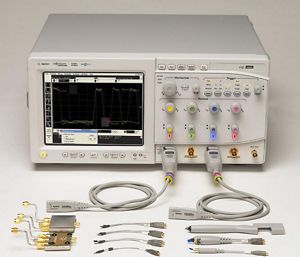

It is built around an Infiniium Series oscilloscope and the Infinii Max probing system, to provide critical capabilities for achieving accurate and repeatable measurements.

Key Points

Low noise floors

Low jitter measurement floors

Lowest trigger jitter and flattest frequency response

Industry's largest sets of software applications

XGA touch screen display with 256 level intensity grading

Specifications

Frequency Range: 12GHz

Number of Channels: 4Ch

Vertical Sensitivity:1mV/div to 1V/div

Sample Rate: 20GSa/s per channel, 40GSa/s on two channels

Standard Memory Depth: 256K per channel, 512K on two channels
