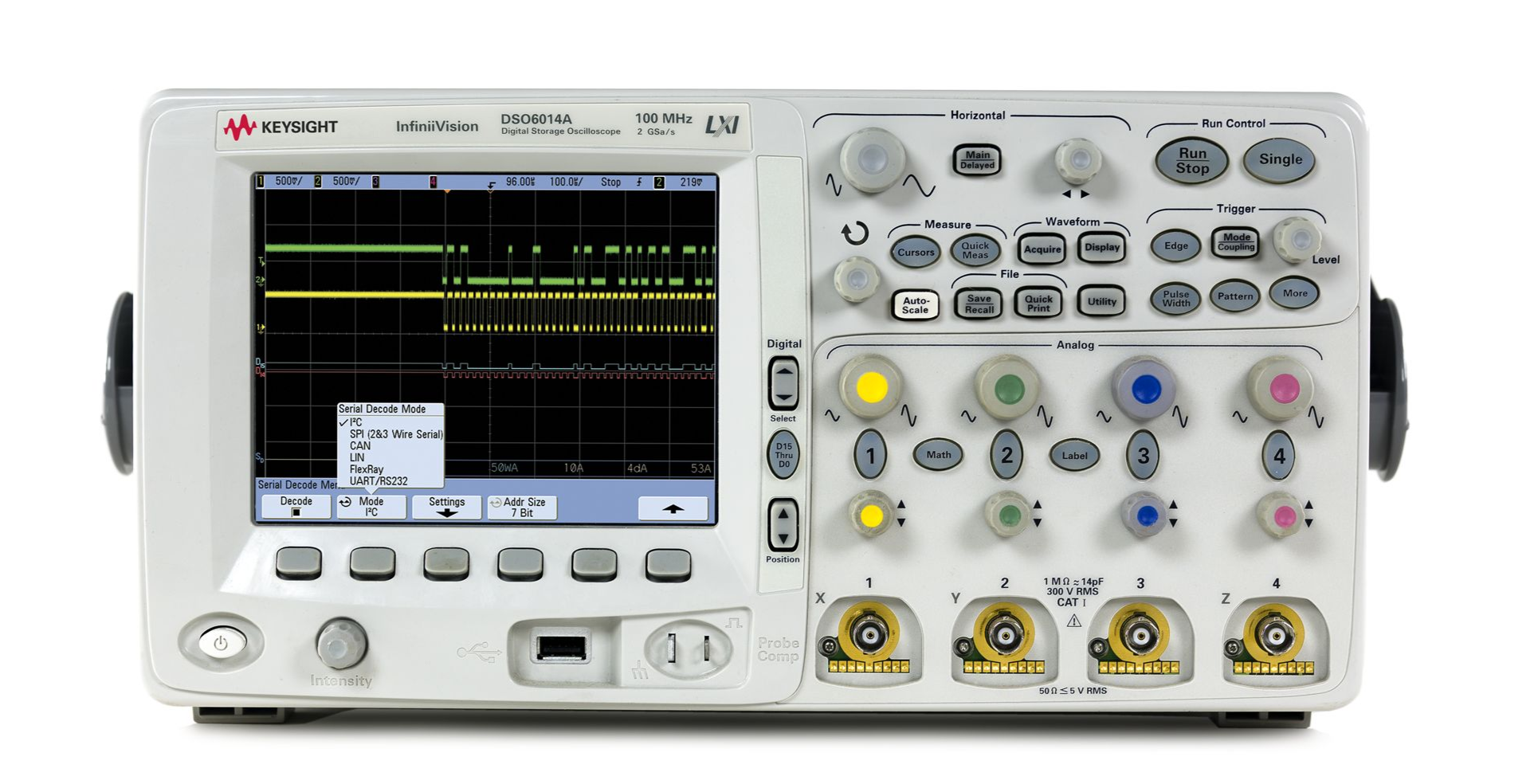

DSO6014A Oscilloscope: 100 MHz, 4 Analog Channels
Description
Gain superior insight into analog, digital, or serial design challenges. The DSO6014A oscilloscope offers MegaZoom III deep memory, the highest definition color display with 256 levels of intensity and the fastest uncompromised update rate of 100,000 waveforms/sec of any scopes in its class.
Key Points
Lab scope performance at a portable scope price:
100 MHz Bandwidth
4 analog channels
2 GSa/s sample rate
Standard 8 Mpts MegaZoom III deep memory
The Fastest Way to Debug your design:
Fastest update rate in the industry at 100,000 waveforms/sec
Digital debug for FPGAs with specific
Specifications
Acquisition: scope channels(4 ch):
Sample rate:2 GSa/sec each channel
Memory depth:2 channels/4 channels, 8 Mpts/4 Mpts
Vertical resolution:8 bits
Peak detection:1-ns peak detect
Vertical system: scope channels:
Scope channels:Ch 1, 2, 3 and 4 simultaneous acquisition
Bandwidth (–3dB):DC to 100 MHz
AC coupled:3.5 Hz to 100 MHz
Range:1 mV/div to 5 V/div (1 Mohm)
Dynamic range:±8 div
Coupling:AC, DC
Power requirements:
Line voltage range:100-120 V, 50/60/400 Hz; 100-240V, 50/60 Hz auto ranging
Line frequency:50/60 Hz, 100-240 VAC; 400 Hz, 100-120 VAC
Power usage:120 W max
Environmental characteristics:
Ambient temperature Operating:-10 °C to +55 °C; non-operating –40 °C to +70 °C
Humidity Operating:95% RH at 40 °C for 24 hr; non-operating 90% RH at 65 °C for 24 hr
Altitude:Operating to 4,570 m (15,000 ft); non-operating to 15,244 m (50,000 ft)
Vibration:Agilent class B1 and MIL-PRF-28800F; class 3 random
