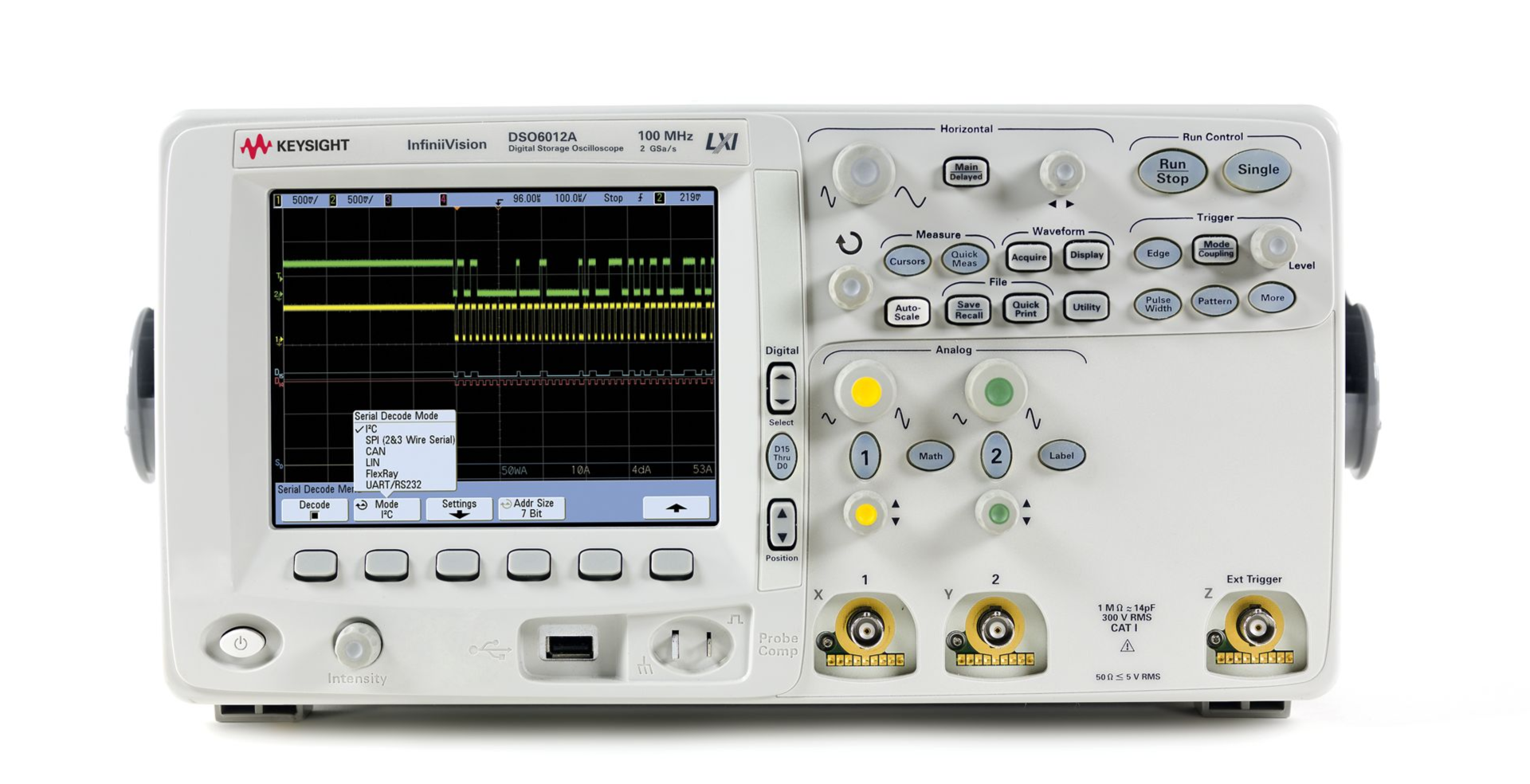

Agilent / HP / Keysight DSO6012A

DSO6012A Oscilloscope: 100 MHz, 2 Analog Channels

Note: Federal Resellers: We Do Not Sell New Equipment
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

Gain superior insight into analog, digital, or serial design challenges. The DSO6012A oscilloscope offers MegaZoom III deep memory, the highest definition color display with 256 levels of intensity and the fastest uncompromised update rate of 100,000 waveforms/sec of any scopes in it's class.

Key Points

Lab scope performance at a portable scope price:
100 MHz Bandwidth
2 analog channels
2 GSa/s sample rate
Standard 8 Mpts MegaZoom III deep memory

The Fastest Way to Debug your design:
Fastest update rate in the industry at 100,000 waveforms/sec
Digital debug for FPGAs with specific

Specifications

Acquisition: scope channels(2 ch):
Sample rate:2 GSa/sec each channel
Memory depth 2 channels/4 channels, 8 Mpts/4 Mpts
Vertical resolution:8 bits
Peak detection:1-ns peak detect

Vertical system: scope channels:
Scope channels:Ch 1 and 2 simultaneous acquisition
Bandwidth (–3dB):DC to 100 MHz
AC coupled:3.5 Hz to 100 MHz
Range:1 mV/div to 5 V/div (1 Mohm)
Dynamic range:±8 div
Coupling:AC, DC

Horizontal Range: 5 ns/div - 50 s/div

Power requirements:
Line voltage range:100-120 V, 50/60/400 Hz; 100-240V, 50/60 Hz auto ranging
Line frequency:50/60 Hz, 100-240 VAC; 400 Hz, 100-120 VAC
Power usage:120 W max

Environmental characteristics:
Ambient temperature Operating:-10 °C to +55 °C; non-operating –40 °C to +70 °C
Humidity Operating:95% RH at 40 °C for 24 hr; non-operating 90% RH at 65 °C for 24 hr
Altitude:Operating to 4,570 m (15,000 ft); non-operating to 15,244 m (50,000 ft)
Vibration:Agilent class B1 and MIL-PRF-28800F; class 3 random
