Agilent / HP / Keysight 8920A

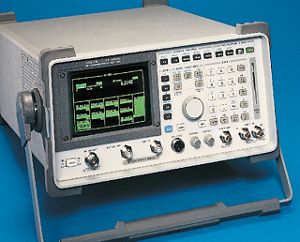

8920A RF Communications Test Set

Please help us customize your browsing experience, by selecting one the below.

Description

This unit is a full featured, one-box test set designed to meet the service and repair needs of today’s RF wireless communications market.

It's single keystroke transmitter and receiver testing simplifies radio test.

Signaling for multiple formats is supported, including tone sequential, digital paging (CCITT, POCSAG, ZVEI, etc.), DTMF, trunking, and cellular signaling.

For cellular phone test, the call processing interface emulates a base station, allowing you to automatically establish and maintain a cellular link
between the test set and an analog cellular phone.

It's built in controller allows you to automate measurements and test routines, and control external instruments.

This unit combined with the Agilent 11807A software, provides a self contained, automated radio test solution.

Key Points

Intuitive call processing interface for cellular
phone test

Functions of more than 20 complete instruments

Frequency ranges:
Signal generator: 30MHz to 1GHz
RF analyzer: 10MHz to 1GHz

Portable and lightweight

Optional full-span spectrum analyzer, tracking
generator and adjacent channel power meter

Built in IBASIC computer

Specifications

RF Frequency

Frequency Range:
Standard: 30MHz to 1GHz
Option 055: 250KHz to 1GHz

Accuracy and Stability: Same as reference oscillator ±0.015Hz

Reference Oscillator Specifications

TCXO (Agilent 8920A standard)

Temperature: 1ppm (0 to +55 °C)

<

p>Aging: <2 ppm/year

<

p>Warm-Up time: <30 sec. to be ±2ppm of final freq.

Supplemental Characteristics:

Switching Speed: <150ms to within 100Hz of the carrier
frequency

Minimum Resolution: 1Hz
