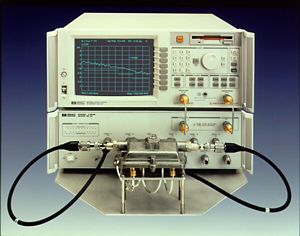

Agilent / HP / Keysight 8712C
8712C Economy Network Analyzer, 300 kHz to 1.3 GHz
Description
This unit is an integrated transmission/reflection test set with narrowband and broadband detection.
It has "Real time" sweep speed (50ms/sweep), synthesized 1Hz resolution source, and also 100dB of system dynamic range.
It also features internal 3.5-inch disk drive (LIF/DOS formats) and VGA interface and internal Agilent Instrument BASIC (IBASIC) capability.
Has TCP/IP-compliant Ethertwist LAN interface option.
There is AM delay and fault location/SRL options.
Key Points
"Real time" sweep speed (50ms/sweep), synthesized 1Hz resolution source, and 100dB of system dynamic range.
Internal 3.5-inch disk drive (LIF/DOS formats) and VGA interface.
Specifications
Frequency Accuracy: +/- 5ppm
Frequency Range: 300KHz - 1.3GHz
Frequency Resolution: 1Hz
Output Impedance: 50ohms
Output Power Range: 13dBm - +50dBm
Output Resolution: 100dB
Sweep Range: 60dB
