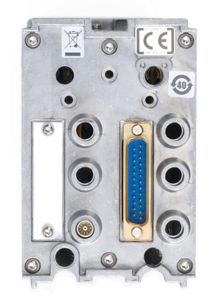

Agilent / HP / Keysight 86107A
86107A Precision Timebase Reference Module
Description
This unit represents one of the most significant improvements in wide bandwidth sampling oscilloscopes in over a decade. Jitter performance has been reduced by almost an order of magnitude to 200fs RMS. Timebase resolution has also been improved from 10ps/division to 2ps/division Because this unit improves timebase jitter and linearity by more than a factor of five it provides extremely accurate views of 40 Gb/s waveforms.
Key Points
Accurate views of your 40Gb/s waveforms
Improve timebase jitter and linearity by more than a factor of five
Specifications
Sample Rate: 40Gb/s
Type (D/A): PlugIn
Type: synchronous clock, square wave to sine wave shape
Characteristic levels: 0.2 - 1.5Vpp
Trigger range: 2 to 48GHz (depends on options)
Electrical Input: 3.5mm male (2.4mm male for frequencies > 25GHz BW)
