Agilent / HP / Keysight 8563EC

8563EC Portable Spectrum Analyzer, 9 kHz to 26.5 GHz

Note: Federal Resellers: We Do Not Sell New Equipment
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

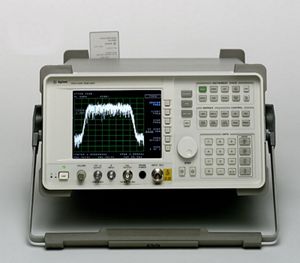

The Agilent 8563EC portable, color display microwave spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer has a standard frequency range of 30Hz to 26.5 GHz (preselected from 2.75 GHz to 26.5 GHz), with optional low-end frequency coverage to 30 Hz.

Key Points

+/-1.0 dB absolute amplitude accuracy

-149 dBm/Hz displayed average noise level (DANL)

<-113 dBc/Hz phase noise at 10 kHz offset

Fast digital resolution bandwidths of 1 Hz to 3 MHz

Portable, MIL-PRF-28800, Class 3 rugged

Easily transfer screen image or trace data to PC with BenchLink software

Specifications

Frequency Specifications:
Frequency range:
Internal mixing:30 Hz to 26.5 GHz
External mixing:18 GHz to 325 GHz

Sweep time:
Range
Span = 0 Hz: 50 µs to 6000 s
Span ±100 Hz:
RBW = 300 Hz: 50 ms to 2000 s
RBW = 100 Hz: 50 ms to 100 ks

Resolution bandwidth:
Range (–3 dB):1 Hz to 1 MHz in a 1, 3, 10 sequence and 2 MHz (3 MHz at –6 dB)
Video bandwidth range: 1 Hz to 3 MHz in a 1, 3, 10 sequence

Noise sidebands:
100 Hz :<= –88 dBc/Hz
1 kHz :<= –97 dBc/Hz
10 kHz :<= –113 dBc/Hz
30 kHz :<= –113 dBc/Hz
100 kHz :<= –117 dBc/Hz

Amplitude Specifications:
Range:Displayed average noise level (DANL) to +30 dBm

Maximum safe input level:
Average continuous power:+30 dBm (1 W, input attn = 10 dB)
Peak pulse power:+50 dBm (100 W, input attn = 30 dB)

Maximum DC input voltage:
DC coupled: ±0.2 Vdc
AC coupled: ±50 Vdc

Displayed average noise level:
30 Hz:<= –90 dBm
1 kHz:<= –105 dBm
10 kHz:<= –120 dBm
100 kHz:<= –120 dBm
1 MHz to 10 MHz:<= –140 dBm
10 MHz to 2.9 GHz:<= –149 dBm
2.9 GHz to 6.46 GHz:<= –148 dBm
6.46 GHz to 13.2 GHz:<= –145 dBm
13.2 GHz to 22.0 GHz:<= –140 dBm
22.0 GHz to 26.8 GHz:<= –139 dBm

Dynamic range:
10 MHz to 2.9 GHz: > 144 dB
2.9 GHz to 6.46 GHz:> 148 dB
6.46 GHz to 13.2 GHz:> 142 dB
13.2 GHz to 22.0 GHz: > 137 dB
22.0 GHz to 26.8 GHz: > 136 dB

Environmental Specifications:
Dimensions (w/o handle, cover): 337 mm W x 187 mm H x 461 mm D
Calibration interval:2 years
Warm-up time :5 minutes in ambient conditions
Temperature: 0 °C to +55 °C (operating); –40 °C to +75 °C (not operating)
Humidity:95% @ 40 °C for 5 days
Maximum power dissipation:180 W
Weight (nominal):16.5 kg (36 lbs)

Power requirements:
115 VAC operation: 90 to 140 V rms, 3.2 A rms max, 47 to 440 Hz
230 VAC operation: 180 to 250 V rms, 1.8 A rms max, 47 to 66 Hz
