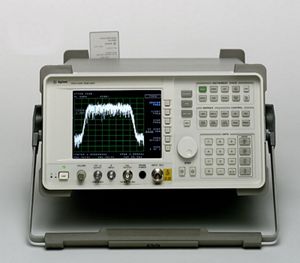

Agilent / HP / Keysight 8560EC
8560EC Portable Spectrum Analyzer, 30 Hz to 2.9 GHz
Description
The Agilent 8560EC portable, color display RF spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a package built to withstand environmental conditions. It offers a complete solution for adjacent-channel power (ACP) testing of burst carrier signals using digital modulation, and the ability to measure occupied bandwidth percentage.
Key Points
+/-1.0 dB absolute amplitude accuracy
-151 dBm/Hz displayed average noise level (DANL)
<-113 dBc/Hz phase noise @ 10 kHz offset
Fast digital resolution bandwidths of 1 Hz to 3 MHz
Portable, MIL-PRF-28800, Class 3 rugged
Easily transfer screen image or trace data to PC with BenchLink software
Specifications
Frequency Specifications:
Frequency range:
Internal mixing: 30 Hz to 2.9 GHz
External mixing:18 GHz to 325 GHz
Sweep time:
Range
Span = 0 Hz: 50 µs to 6000 s
Span ±100 Hz:
RBW = 300 Hz: 50 ms to 2000 s
RBW = 100 Hz: 50 ms to 100 ks
Resolution bandwidth:
Range (–3 dB):1 Hz to 1 MHz in a 1, 3, 10 sequence and 2 MHz (3 MHz at –6 dB)
Video bandwidth range: 1 Hz to 3 MHz in a 1, 3, 10 sequence
Noise sidebands:
100 Hz :<= –88 dBc/Hz
1 kHz :<= –97 dBc/Hz
10 kHz :<= –113 dBc/Hz
30 kHz :<= –113 dBc/Hz
100 kHz :<= –117 dBc/Hz
Amplitude Specifications:
Range:Displayed average noise level (DANL) to +30 dBm
Maximum safe input level:
Average continuous power:+30 dBm (1 W, input attn = 10 dB)
Peak pulse power:+50 dBm (100 W, input attn = 30 dB)
Maximum DC input voltage:
DC coupled: ±0.2 Vdc
AC coupled: ±50 Vdc
Displayed average noise level:
30 Hz:<= –90 dBm
1 kHz:<= –105 dBm
10 kHz:<= –120 dBm
100 kHz:<= –120 dBm
1 MHz to 10 MHz:<= –140 dBm
10 MHz to 2.9 GHz:<= –151 dBm
Dynamic range:
10 MHz to 2.9 GHz: > 146 dB
Environmental Specifications:
Calibration interval:2 years
Warm-up time :5 minutes in ambient conditions
Temperature: 0 °C to +55 °C (operating); –40 °C to +75 °C (not operating)
Humidity:95% @ 40 °C for 5 days
Maximum power dissipation:180 W
Weight (nominal):16.5 kg (36 lbs)
Power requirements:
115 VAC operation: 90 to 140 V rms, 3.2 A rms max, 47 to 440 Hz
230 VAC operation: 180 to 250 V rms, 1.8 A rms max, 47 to 66 Hz
