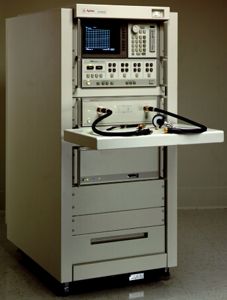

85107B Microwave Network Analyzer, 45 MHz to 50 GHz
Description
This Analyzer is an instrument which measures the complex transmission and reflection characteristics of two port devices in the frequency domain.
It does this by sampling the incident signal, separating the transmitted and reflected waves, and then performing ratios that are directly related to the reflection and transmission coefficients of the two port.
Frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest.
This unit utilize synthesized frequency sources to provide a known test stimulus that can sweep across a range of frequencies or power levels.
Key Points
Real time error corrected measurements
0.001dB, 0.01 degree, 0.01ns measurement resolution
Optional time domain and pulsed RF measurement capability
Specifications
Frequency Range: 45MHz to 50GHz
Form Factor: System
Type: Vector
Integral Test Set: S Parameter
Output Impedance: 50ohms
Number of Receiver Channel: 1Ch
