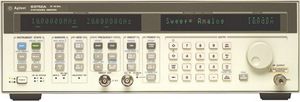

Agilent / HP / Keysight 83751A
83751A Synthesized Sweeper, 2 - 20 GHz
Description
This Synthesized Sweeper brings outstanding synthesized performance to the component-test marketplace.
It delivers the best performance for the price in general purpose benchtop, swept test or scalar applications.
This sweeper provides superior accuracy and stability while maintaining the speed of an analog source.
Fully synthesized CW, stepped and ramp sweep modes are available in broadband and narrowband operation.
The synthesis capability is particularly useful for the characterization of narrowband devices, in which the frequency instabilities of open loop sources become most apparent.
Key Points
Fully phase locked analog sweep for accuracy and speed
Flat and accurate output power to characterize the linear response of the test device
Offset frequency sweep for mixer test
Agilent 8350 programming mode for backwards compatibility
Specifications
Frequency range: 2GHz to 20GHz
Frequency resolution: 1Hz
Modulation: AM, FM, PULSE
Output range: -15dBm to +10dBm
Output resolution: .01dB
Time base stability: +/- 10ppm
Type: Stand-Alon
