Agilent / HP 8120-4782

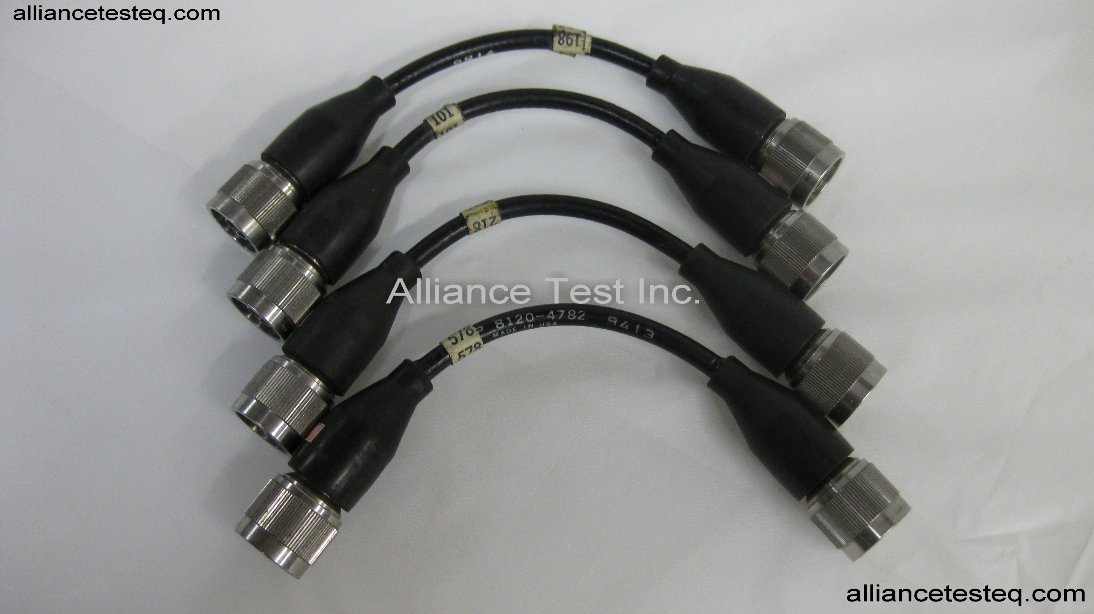

These Cables are precision 50ohms RF interconnect cables for the 8753 network analyzer to 85046A or 85047A s parameter test sets. The cables use slotless N type connectors for low SWR and are cut to precise lengths for equal time delay (phase matching). Typical phase match error is less than 2 degrees at 6GHz among a set of four cables. Each cable is swept to 6GHz, but is usable to 18GHz. These cables also can be used with the 35677A, 8503A, and 87511A 50ohms parameter test sets in place of the 8120 4387 RF cables. Sold in matched sets of four and standard length of 7.5 inches (19.05cm).
