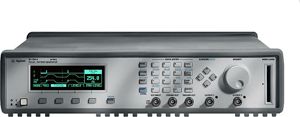

Agilent / HP / Keysight 81104A

This unit with one or two Agilent 81105A output modules will build on the performance of the 81101A and is backward-compatible.

This unit extends the frequency range and adds RZ/NRZ pattern capability up to 16kbit per channel.

An NRZ strobe channel will provide a trigger at arbitrary points in the pattern, or it can be used as an additional pattern source.

If two of this units output modules are available, the outputs can be added.

This will allow an elaborate pulse shape for simulating glitches, testing clock-recovery circuits or generating 3- or 4-level codes.

Channel add and 1000ohm source modes each operate up to about 60MHz. Combined, the maximum speed will be about 15MHz.

Each of these units need one (1) output module Agilent 81105A.

And for the dual channel configuration, two (2) output modules Agilent 81105A are needed.
