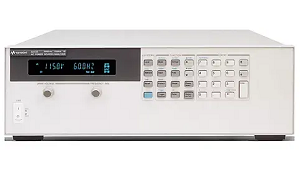

Agilent / HP / Keysight 6813B
6813B AC Power Source / Power Analyzer, 1750 VA, 300 V, 13 A
Description
This AC Power Source / Power Analyzer is ideal for applications such as power supply testing, UPS testing, avionics ATE, the testing of power factor corrected equipment and devices.
The set up is easy with the Graphical User Interface, that requires no programming.
You can protect your valuable prototypes and assemblies with the extensive set of protection features.
It saves space on a lab bench or in a test rack with this flexible instrument, that can take the place of an AC source, DC source, powerful arbitrary waveform generator, and a sophisticated power analyzer.
An optional second power analyzer is available, this can be used independently from the source, or for dual-node measurements such as power supply input/output efficiency tests.
Key Points
AC and DC output capability
High-accuracy measurements
Built-in harmonic analysis capability
Arbitrary waveform generation
Compact single-phase
Built-in GPIB and RS-232 interface with SCPI programming
Includes Graphical User Interface and VXIplug&play drivers
Specifications
Output Ratings:
Power: 1750VA
Voltage rms: 300V
Current rms: 13A
Repetitive & non-repetitive peak current: 80A
Output Frequency Range:
DC; 45Hz to 1KHz
Ripple & Noise (20KHz to 10MHz)
-60dB (relative to full scale)
Line & Load Regulation:
Line regulation (% of full scale): 0.1%
Load regulation (% of full scale): 0.5%
