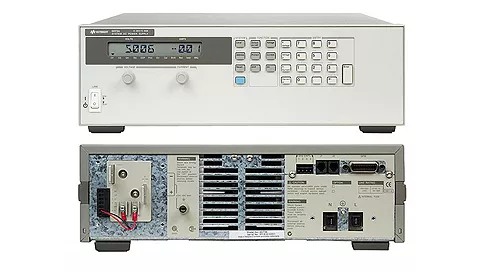

Agilent / HP / Keysight 6674A
6674A 2000 Watt System Power Supply, 60V, 35A
Description
This unit is part of the 667x series of 2000 Watt, single output, power supplies, with an internal GPIB interface and SCPI programming. These models provide many talker/listener functions including remote programming of voltage and current with readback of actual measured output values. Sixteen supplies can be connected to one GPIB interface via a serial link connection.
Key Points
Auto-parallel up to five units
Outputs can be connected in series
Programmable over-voltage and over-current protection
Over-temperature protection
Discrete Fault Indicator/Remote Inhibit (DFI/RI)
Self-test occurs at power-on from an GPIB command
User definable power-on state
VXI plug&play drivers
Specifications
Output Ratings:
Output voltage: 0 to 60V
Output current (40°C): 0 to 35A
Programming Accuracy at 25°C ±5°C:
Voltage 0.04% + 60mV
Current 0.1% + 25mA
Ripple & Noise from 20Hz to 20MHz:
Voltage rms: 1.25µV
Peak-to-Peak: 11mV
Current rms: 25mA
Readback Accuracy at 25°C ±5°C (percent of reading plus fixed):
Voltage 0.05% + 90mV
+Current 0.1% + 35mA
