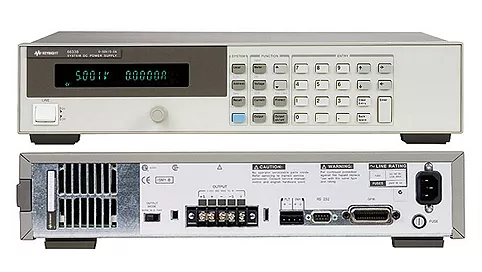

Agilent / HP / Keysight 6631B
6631B 80 Watt System Power Supply, 8V, 10A
Description
This Power Supply is an ideal power source for demanding production test applications.
This DC power supply offers high performance and precision measurements in a one box solution.
To reduce test-system development time and provide precision testing, the 6631B provides current measurement down to the microamp level.
This unit also provides high-speed programming with under 4 millisecond response time.
This series of linear regulated 80 to 100W DC power supplies is designed to maximize the throughput of DUTs through the manufacturing test process.
Both programming and measurement are optimized for speed.
Key Points
High throughput
Precision low current measurement
Low output noise
High speed programming
GPIB and RS232 interface
VXI plug & play drivers
Specifications
Number of outputs: 1o/p
Output voltage: 0 to 8V
Output current: 0 to 10A
Load Voltage: 2mV
Load Current: 2mA
Line Voltage: 0.5mV
Line Current: 1mA
