Agilent / HP / Keysight 54833D

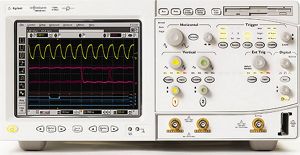

54833D 2+16 Channel, 1 GHz Mixed-Signal Infiniium Oscilloscope
Description
This unit is a 2+16 Channel 1GHz Mixed-Signal Oscilloscope (MSO) that seamlessly integrates 2 scope channels and 16 logic timing channels, will provide the detailed signal analysis of a scope with the multi-channel timing measurements and triggering of a logic analyzer.
Its 18 channel capability enables triggering on specific cycles of operation that is beyond the capabilities of traditional 4-channel scopes.
And with the N5397A FPGA Dynamic Probe, the 16 logic channels can be used to look inside the FPGA.
This unit incorporates Agilent's MegaZoom deep memory technology, available up to an unprecedented 128Mpts, that will provide fast waveform update rates and instant response, even with the deepest memory being acquired.
The mixed signal triggering provides a complete set of trigggering features across all 16 timing channels and the 2 scope channels.
Key Points
1GHz Bandwidth Mixed Signal Oscilloscope
2 scope and 16 digital channels for mixed signal analysis
Specifications
Frequency Range/ Bandwith: 1GHz
Max. Vertical Sensitivity: 5V/div
Min. Vertical Sensitivity: 1mV/div
Number of Channels: 2 + 16CH
Record Length: 4Mpts - 16Mpts 1/2 channels
Sample Rate: 2GSa/s
Type (D/A): Mixed Signal
