Agilent / HP 5036A

Microprocessor Lab

Please help us customize your browsing experience, by selecting one the below.
Agilent / HP 5036A -

Description

This unit provides both the hardware and software basics and vital troubleshooting information needed to solve microprocessor problems.

It includes complete resident software that allows easy program entry and modification, program debugging aids, interesting demonstration programs, built-in signature analysis & self-test routines, and 1 k-byte of user program space.

Key Points

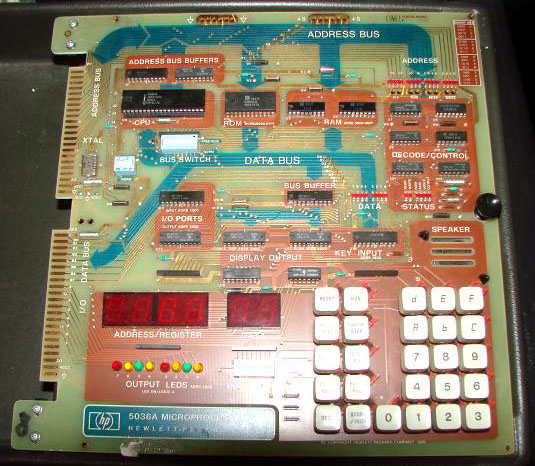

Color PC board graphics illistrate system block diagram to enhance learning.

Multiple experiment troubleshooting chapter highlights IC Troubleshooters such as HP 545A Probe, 546A Pulser, 547A Current Tracer and HP Signature Analyzers.

Plug in Jumpers create real hardware faults that allow realistic troubleshooting practice.

Complete resident software.

Dual 5 Volt power supplies, plus edge connectors for expandability.

LED monitors on all data, address, status and output lines.

Specifications

Color PC board graphics illistrate system block diagram to enhance learning.

Multiple experiment troubleshooting chapter highlights IC Troubleshooters such as HP 545A Probe, 546A Pulser, 547A Current Tracer and HP Signature Analyzers.

Plug in Jumpers create real hardware faults that allow realistic troubleshooting practice.

Complete resident software.

Dual 5 Volt power supplies, plus edge connectors for expandability.

LED monitors on all data, address, status and output lines.
