Agilent / HP / Keysight 34980A

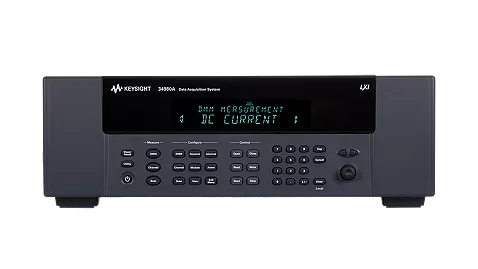

34980A Multifunction Switch / Measure Unit
Description
Agilent/HP 34980A Multi function Switch/Measurement Unit is a good cost-effective alternative to PXI and VXI test-system platforms. HP 34980A helps in accelerating test-system integration and development. With HP 34980A, the cost of test can be lowered. The HP 34980A provides system switching up to 26.5 GHz and gives basic measurements and system control. The 34890A also provides DMM measurements, counter/ totalizer functionality, digital I/O with pattern capabilities and analog outputs with basic waveforms. 34980A also includes standard connectors and software drivers, computer-standard I/O, and web browser interface. HP 34980A can easily integrates into electronic functional test and data acquisition systems. The 34980A has high-density multiplexers for scanning multiple channels, matrices for connecting multiple points at one time and general purpose switches for simple control and high power needs. Use the 34980A which offers functionality to measure temperature, AC or DC voltage, resistance, frequency and current. HP 34980A offers flexible choices for system control. External devices such as microwave switches, attenuators, solenoids and power relays can be controlled. With the built-in Ethernet interface, you can control the 34980A and collect data from anywhere on the network. The IO libraries that come with Agilent/HP 34980A provide robust instrument control and work with the most common software environments. The integrated DMM is mounted inside 34980A mainframe which can measure 11 types of inputs such as temperature with thermocouples, RTDs, or thermistors (with 34921A), DC voltage and current, AC voltage and current, 2- and 4-wire resistance, frequency and period. HP 34980A comes with BechLink Data Logger software which provides convenient way to collect and analyze your data.
Key Points
8-slot mainframe with 21 mix and match plug-in modules.
Up to 560 2-wire multiplexer channels or 4096 matrix cross-points in one mainframe.
Optional built-in 6½ digit DMM measures over 3000 readings/sec.
Easy to integrate.
Built-in Ethernet.
USB 2.0.
GPIB connectivity, standard connectors and software drivers for most common programming environments.
Includes FREE BenchLink Data Logger Software
Flexible rack mounting options.
Low EMI and efficient system cooling.
Remote access and control.
Mass interconnect solutions.
Specifications
Power supply: Universal 100V to 240V ± 10%
Power line frequency: 50 – 60Hz ± 10% automatically sensed
Power consumption: 150VA
Operating environment: Full accuracy for 0°C to 55°C Full accuracy to 80% R.H. at 40°C
IEC 60664-1 pollution degree 1
Storage environment -40°C to 70°C [1]
Mainframe dimensions 133H x 426W x 341D mm (5.25” x 16.8” x 14”) Full rack, 3 units high
Mainframe weight: 8.8kg (19.6lbs)
Module dimensions: 280 x 170 x 27mm (11” x 6.7” x 1”)
