Agilent / HP / Keysight 34941A

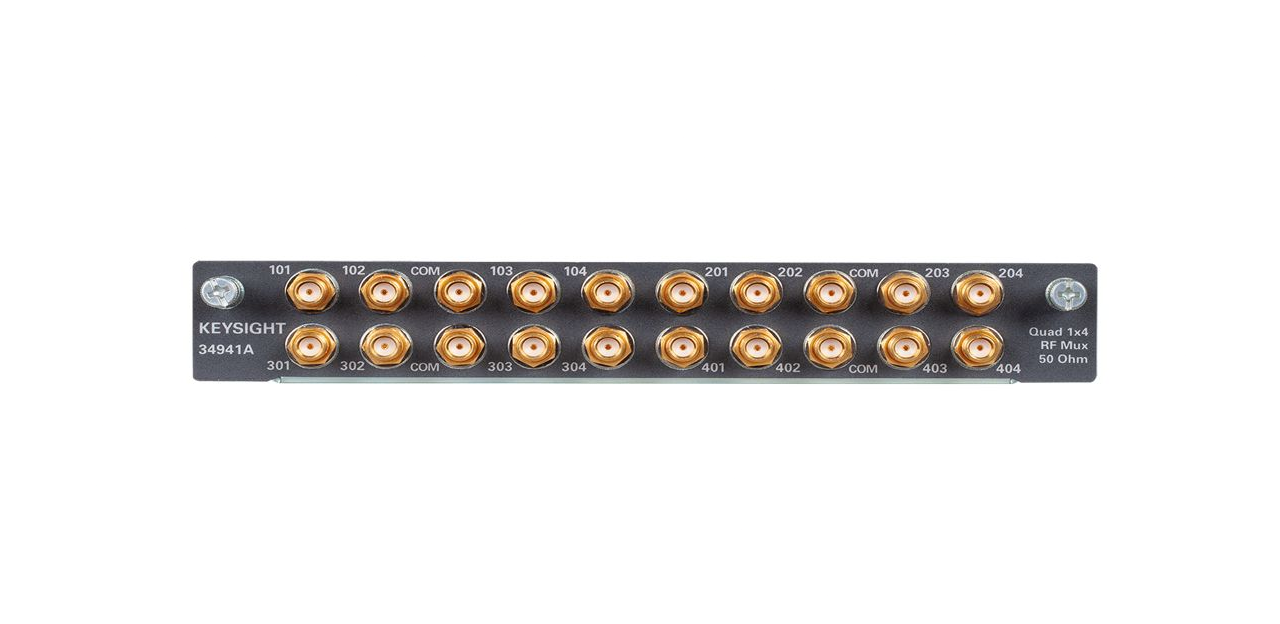

34941A Quad 1x4 50 Ohm 3 GHz Multiplexer Module for 34980A

Note: Federal Resellers: We Do Not Sell New Equipment
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

This Multiplexer module is for the 34980A Multifunction Switch/Measure Unit it offers bi directional switching for test signals from DC to 3GHz. High channel isolation ensures quality dynamic range measurements with your oscilloscope, spectrum analyzer, or other instrumentation. The RF multiplexers are configured as four independent 1x4RF multiplexers on a single module. Individual multiplexers are isolated from each other and the Mainframe chassis to prevent ground loops. Multiple banks can be cascaded together to create an even large multiplexer up to 97 cascaded RF channels in a single 34980A mainframe.

Key Points

Quad 4 channel multiplexers

DC to 3GHz, 50ohms

High isolation, low VSWR

30V, 0.5A, 10W switching

SMA connectors

Specifications

Thermal Offset: 50W

Impedance: 50ohms

Number of Channels: 4Ch
