Agilent / HP / Keysight 33250A
33250A Function / Arbitrary Waveform Generator, 80 MHz
The Agilent Technologies 33250A is a function/arbitrary waveform generator which uses direct digital-synthesis techniques to create a stable, accurate output on all waveforms, down to 1 µHz frequency resolution.
The unique design of the 33250A combines a low profile instrument with the benefits of a color graphical display. Using this, multiple waveforms can be displayed at the same time.
The graphical interface also allows to modify arbitrary waveforms quickly and easily.

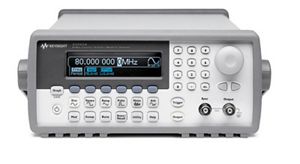

The 33250A has a straightforward and user friendly operated front panel. The knob or numeric keypad can be used to adjust frequency, amplitude and offset.
Timing parameters can be entered in hertz (Hz) or seconds. Arbitrary waveform can be generated with 12-bit vertical resolution, 64K memory depth, and a sample rate of 200 MSa/s using 33250A at no extra cost.
With variable edge time, pulse width and voltage level, the 33250A is ideally suited to a wide variety of pulse applications.

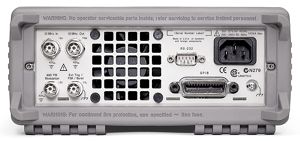

The 33250A TCXO timebase gives you frequency accuracy of 2 ppm for your most demanding applications. The external clock reference input/output lets you synchronize to an external 10 MHz clock, to another 33250A, or to an Agilent 33120A.
Phase adjustments can be made from the front panel or via a computer interface,
allowing precise phase calibration and adjustment.
10 standard waveforms
Built-in 12-bit 200 MSa/s arbitrary waveform capability
Precise pulse waveform capabilities with adjustable edge time
LCD color display provides numeric and graphical views
Easy-to-use knob and numeric keypad
Instrument state storage with user-defined names
Portable, ruggedized case with non-skid feet
IntuiLink software plus GPIB & RS-232 interfaces included
Power supply: 100-240 V, 50-60 Hz, 100-127 V, 50-400 Hz
Power consumption: 140 VA
Operating temp.: 0°C to 55°C
Storage temp.: -30°C to 70°C
Power on state: default or last
Interface: IEEE-488 and RS-232 std.
Language: SCPI-1997, IEEE-488.2
Bench top 254 x 104 x 374 mm
Rackmount 213 x 89 x 348 mm
Weight: 4.6 kg
Acoustic noise: 40 dBA
Frequency Characteristics: Sine - 1 micro Hz to 80 MHz, Square - 1 micro Hz to 80 MHz
Pulse: 500 micro Hz to 50 MHz, Arb - 1 µHz to 25 MHz
Ramp: 1 µHz to 1 MHz
White noise: 50 MHz bandwidth
Resolution: 1 µHz
Output Characteristics: Amplitude (into 50 Ohms) - 10 mVpp to 10 Vpp, Resolution - 0.1 mV or 4 digits
Modulation: AM, FM, FSK
