Agilent / HP / Keysight 16911A

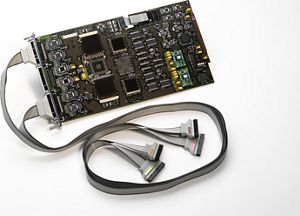

16911A 68-Channel 4 GHz Timing/250 MHz State Logic Analysis Module

Note: Federal Resellers: We Do Not Sell New Equipment
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

This Logic analysis module offers 4GHz high speed timing analysis and state speeds up to 450MHz.

The software upgradeable acquisition memory and state speed allows you to upgrade your acquisition hardware as your needs evolve.

Used with the fully modular and customizable 16900 Series logic analyzer mainframes, this unit offers the perfomance, features, and functionality needed to debug and validate today's digital systems easily and accurately.

Key Points

68 channels

4GHz (250ps) timing zoom with 64K memory depth

500MHz / 1GHz (full / half-channel) conventional timing with deep memory

500MHz transitional timing

Selectable memory depths of 256K, 1M, 4M, 16M, or 32M.

Supports clock rates up to 250MHz or 450MHz

Supports data rates up to 250Mb/s or 500Mb/s

Comprehensive single ended threshold support

Specifications

Channels per module:68
Max channels on a single timebase and trigger:340
Memory depths: up to 32 Mb
High speed timing rate:4 GHz (250 ps) with 64 K depth
Max deep memory timing sample rate (half/full channel):1.0 GHz (1.0 ns)/500 MHz (2.0 ns)
Transitional timing:500 MHz (2.0 ns)
Max state clock rate: up to 450 MHz
Max state data rate: up to 500 Mb/s
Supported signal types: Single-ended
Probe compatibility:40-pin cable connector
