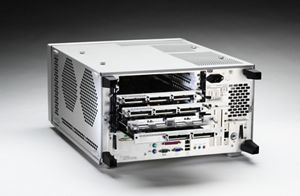

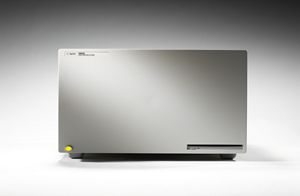

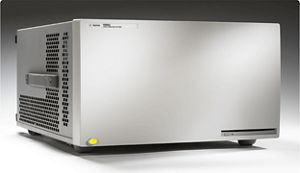

Agilent / HP / Keysight 16900A
16900A Logic Analysis System
The Agilent 16900A logic analysis system provides high-performance, system-level debugging of digital designs.
Expandability is the key to the system´s long-term value.
Customize this system for your specific needs with innovative probing, high-performance measurement modules, and post-processing analysis tools.
A Wide Variety of Modules Offers Measurement Flexibility Customize this 6-slot logic analysis system for your specific measurement needs with Measurement Modules Features: Analyzer Control - Control the analyzer directly via mouse and keyboard.
Multiframe Pro - Debug the most complex, multiple bus systems using a logic analysis system comprised of multiple mainframes connected together with a single interface control.
Multi-monitor Support - Maximize your data viewing with up to four external monitors at up to 1600 x 1200 resolution.
Multiple Data Views - Track problems from symptom to root cause across several measurement modes by viewing time-correlated data in waveform/chart, listing, source code, or compare displays.
Modularity and expandability
Intuitive user interface
Hosted power mode and offline analysis
Open PC platform
Wide range of use models
LAN: 10/100 BaseT (optional Gbit LAN)
I/O Ports: Two USB 1.1, parallel, serial, external video, calibration BNC, Clock in BNC
Interface to other instruments: Trigger In/Out, Target control port
View Scope integrates time-correlated logic analyzer & scope waveforms into single, waveform display
