Agilent / HP / Keysight 16700B

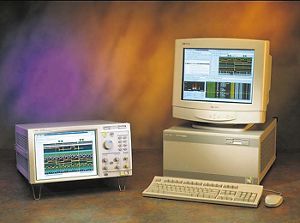

16700B Logic Analysis System
Description
The Agilent 16700B logic analysis system provides comprehensive system-level debugging optimized for multiple processor/bus designs. With on-line processor and bus setup assistant and an intuitive user interface, your design team can finally work together to solve tough hardware/software integration problems. A mouse and keyboard are included standard. The 16700B requires an external monitor.
Customize a logic analysis system that meets your specific measurement needs
Key Points
Touch Screen Interface
Multiframe Configuration
Enhanced Mainframe Hardware
Timing Zoom Technology
VisiTrigger Technology
Processor and Bus Support
Direct Links to EDA Tools
Transparent File System Access
Documentation Capability
Post-Processing Analysis Tools
Setup Assistant
Tabbed Interface
Multi-Windowed View of Target System Activity
Global Markers
Resizable Windows and Data Views
Web-Enabled System
Specifications
* 5 measurement module slots:
* 1 slot for emulation module or Multiframe module
* Built-in 40x CD-ROM drive
* 10/100 BaseT LAN auto-sensing
* 128 MB system RAM, upgradeable to 256 MB with Option 003
