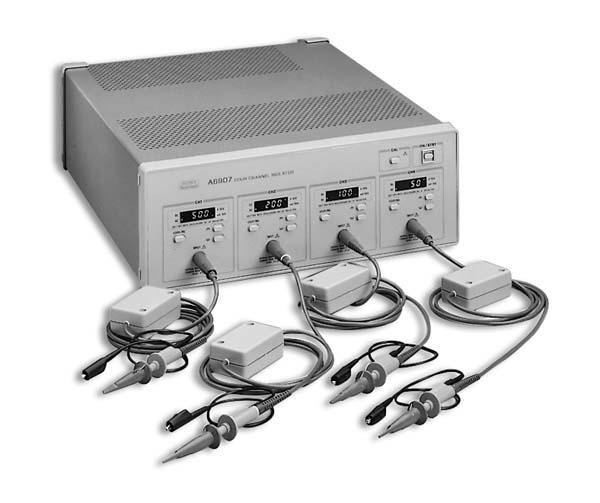

Tektronix A6907
Isolator 4Ch
Description
This Isolator is essential tools for power conversion design.
Accurate floating measurements are required to design and verify high performance switch mode circuits.
This unit offers safety, performance, multiple isolated channels, direct connection to the measurement instrument and simplified controls in a single box.
This unit offers high performance and safety for the lowest cost per channel.
Key Points
For Floating Signals to ±850V
Monolithic
4 Channels
CMRR: 60dB @ 1MHz
GPIB
Push button Self calibration of Offset and Gain
Each Channel Can Be Individually Set for Coupling and Attenuation
Specifications
Full Range Measurements: ±2mV to ±850V
Frequency Response Bandwidth: 60MHz (-3dB)
Maximum Working Voltage: 600VRMS, 850V
Input Impedance Resistance: 10megaohm
Capacitance: 4.5pF, ±0.5pF
Output Impedance: 50ohms
Output Drive: ±500mV into 50ohms load
Maximum Common to Ground Slew Rate: 20,000V/µs
Offset Accuracy: ±20mV
