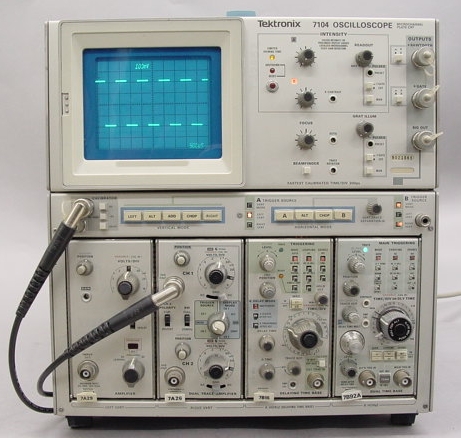

Tektronix 7104
Oscilloscope Mainframe 1GHz
Description
This Oscilloscope Mainframe has 4 Slots and a bandwidth of 1GHz.
Plug-In's not included.
The Tektronix 7104 Oscilloscope is one of the fastest analog scopes ever built.
It has a bandwith of 1GHz using a 50ohms 7A29 vertical amplifier.
The 7B10 and 7B15 time base modules allow the fastest calibrated sweep rate of 200picoseconds/Division.
Key Points
Viewing of ì fast transients in normal light
CRT readout
Specifications
Ultra-high writing speed: 20cm/us
Rise time: 350ps
Calibrated sweep speeds: Upto 200ps/div
vertical deflection with 7A29 amplifier: 10mV/div
Holds 4 plug-ins
