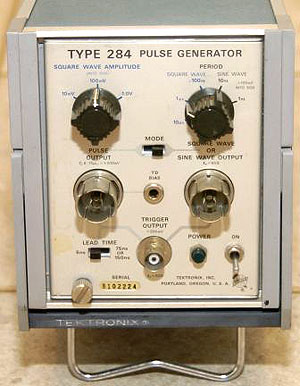

Tektronix 284
Pulse Generator
Description
This Pulse Generator offers all of the signals required to check the rise time, vertical deflection factor, and horizontal sweep rates of sampling oscilloscopes.
This Pulse Generator has an output of square wave, sine wave, or pre trigger pulse output.
Key Points
Pulse output of 70pS rise time
Pulse width of 1µS
Rep rate of approx. 50KHz Square wave output
Periods of 10µS, 1µS, or 100nS
Amplitude is 10mV, 100mV, or 1V into 50 ½
Sine wave output periods of 10nS or 1nS
Amplitude is 100mV into 50 ½
Trigger output is square wave, sine wave, or pretrigger pulse output
Specifications
Pulse output: 70pS rise time
Pulse width: 1µS
Rep rate: approx. 50KHz Square wave output
Periods: 10µS, 1µS, or 100nS
Amplitude: 10mV, 100mV, or 1V into 50 ½
Sine wave output periods: 10nS or 1nS
Amplitude: 100mV into 50 ½
