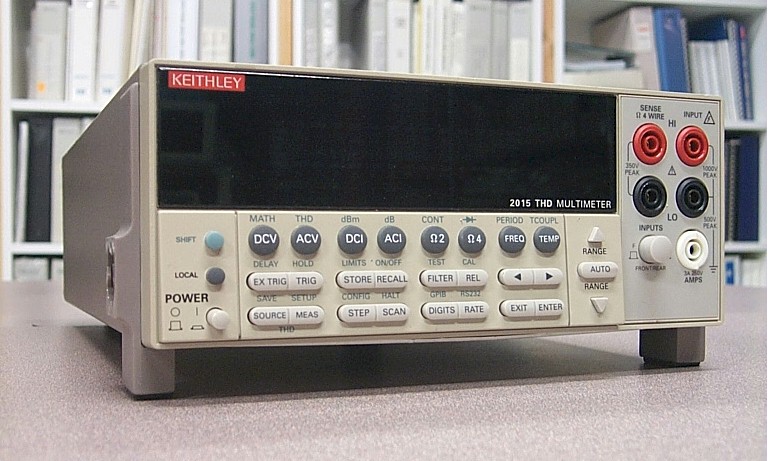

Keithley 2015
Total Harmonic Distortion Digital Multimeter
Description
This Total Harmonic Distortion Multimeter combines audio band quality measurements and analysis with a full function 6 1/2 digit DMM.
Test engineers can make a broad range of voltage, resistance, current, frequency, and distortion measurements, all with the same compact, half rack measurement instrument.
These features 13 multimeter modes including THD, THD + noise, and SINAD and has an integral 20Hz to 20KHz sine wave source and 5 audio filters.
Key Points
THD, THD+Noise, and SINAD measurements
20Hz to 20KHz sine wave generator
Fast frequency sweeps
4Vrms single ended or 8Vrms differential output
Individual harmonic magnitude measurements
5 standard audio shaping filters
13 DMM functions (6 1/2 digits)
Specifications
AC current: 1A to 3A
AC voltage range: 100mV to 750V
DC current: 10mA to 3A
DC voltage range: 100mV to 1000V
Frequency range: 3Hz to 500KHz
Interface: 100ohms
Number of digits: 6.5
Resistance range: 100Mohms
