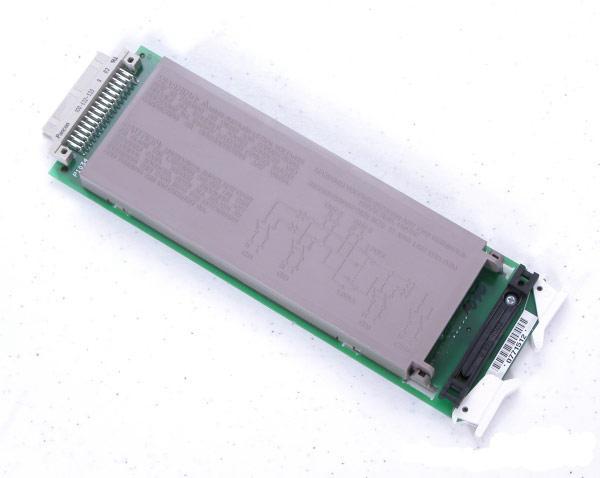

Keithley 2001-Scan
Scanner Card 10Ch
Description
This Scanner Card has a 10 channel scanner containing eight relay inputs and two solid state inputs.
Multiplex one of ten 2 pole or one of five 4 pole signals into the and/or any combination of 2 or 4 pole signals.
Two solid state channels offer high speed multiplexing on the Model 2001 and 2002.
Key Points
(8) 2 Pole Relay Inputs
(2) 2 Pole Solid State Inputs
Channels are Configurable to 4 pole operation
Specifications
DC signals: 110V DC, 1A switched, 30VA
<
p>Resistance: <275Ω
Actuation time: 2.5ms
Contact resistance: <1Ω
Connector type: Screw terminal
