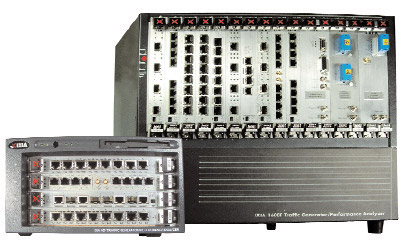

Ixia 1600T
16-Slot Chassis
Description
This unit can handle up to 10 10GBASE-X LAN WDM ports and up to 16 10GBASE-R LAN, 10GBASE-W WAN as well the electrical ports.
As many as 256 chassis can be combined in a cluster to provide testing of thousand of 10-GigE ports, with the l0-GigE load modules operating seamlessly with the company's other load modules such as GigE over copper/fiber 10/100 Ethernet and OC-3C/OC48c. All load modules are available.
Key Points
Support for 10/100/100 Ethernet, 10 Gigabit Ethernet, Packet Over SONET (POS), and ATM interfaces
Integrated PC controller running Windows 2000 for management and
control of port configuration and statistics
Daisy-chaining of up to 256 chassis providing synchronization accuracy to
within 10 nanoseconds
Powerful automation facilities using the Tcl scripting language with easy
integration into automated lab environments
Generate and analyze network traffic synchronously over thousands of
ports simultaneously
Specifications
Slots: 16
Size: 17.5"w x 15.7"h x 20.4"d (44.5 x 39.9 x 52cm)
Weight: 47lbs. (21kg)
Power: 20 AMP@110V 10 AMP@220V 60/50Hz
Timing Source: Internal or synchronized with another Ixia chassis
Operating System: Windows 2000 Pro
