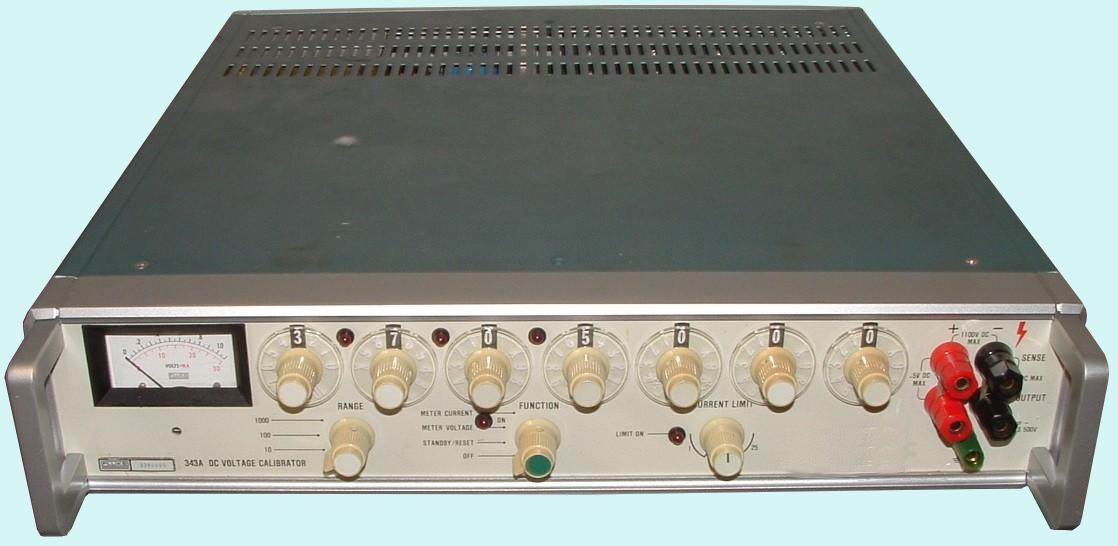

Fluke 343A
DC Voltage Calibrator
Description
This DC Voltage Calibrator is a 7 digit instrument with a basic accuracy of 20ppm and a resolution of 1µV on the 10µV range.
Cleanliness of the dc output is evident in the combined ripple and noise specifications of 50µV rms from the 343A.
Short term jitter and other random excursions are almost non existent, less than 1ppm.
Key Points
Basic accuracy of 20ppm and a resolution of 1µV on the 10µV range
Cleanliness of the DC output is evident in the combined ripple and noise
Specifications of 50µV rms from the 343A
Short term jitter and other random excursions are almost non existent, less than 1ppm
Covers 0 to 1111.1110 Volts in three ranges
Output current is 0 to 25mA at any setting
Resolution of 0.1ppm of range (1µV maximum)
Accuracy: ±0.003% of setting or ±0.0003% of range (worst case)
Features a four terminal floating output and adjustable current limit with indicator
Specifications
Output current: 0 to 25mA
Resolution: 0.1ppm of range
Accuracy: ±0.003% of setting or ±0.0003% of range
