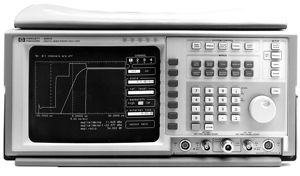

8992A Digital Video Power Analyzer
Description
The Digital Video Analyzer provides complete and accurate characterization of today's complex pulsed signals.
It is capable of performing seven automatic timing measurements (rise time, fall time, pulse width, PRI, PRF, duty cycle, and delay) and five automatic power measurements (peak power, average power, pulse top/base amplitude, and overshoot) with push button ease.
Front panel operation is intuitive and straightforward.
The 8992A features two oscilloscope channels permitting simultaneous measurements on the modulating and detected power waveforms.
Key Points
Simulates realistic propagation models for analog and digital television
Static and time varying ghosts
RF input/output for full IF/VHF/UHF coverage
Complete pulse characterization of digital video/audio signals
Prints to an HPIB graphics printer
Specifications
Power range: -33 to +20dBm
Number of bits: 12 bits
Frequency range: 20MHz to 40GHz
Power measurement range: -33 to + 20dBm
