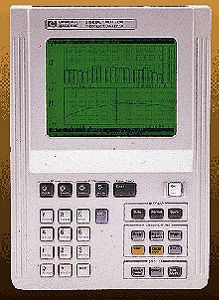

Agilent / HP / Keysight 3569A

This Singnal Analyzer is a portable, battery powered real time frequency analyzer designed for onsite product noise characterization, including real time sound intensity analysis.

Octave and 1/3 octave resolution measurements are made in real time.

For tonal measurements of single frequencies or narrowband signals, the optional FFT mode provides from 100 to 1600 lines of linear frequency resolution for high accuracy.

The sound intensity mode in the unit can be used to identify noise sources or measure sound power.

Individual surface areas are entered into a sound power measurement table and sound power is automatically calculated at the end of the measurement.

Sound intensity probes are directly compatible.

Built in pink and white noise sources provide a convenient source for reverberation time and stimulus/response measurement.
