Agilent / HP / Keysight E4411A

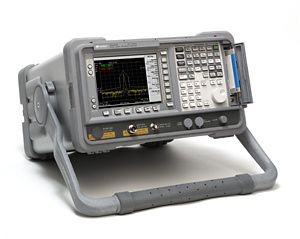

E4411A ESA-L Portable Spectrum Analyzer, 9 kHz to 1.5 GHz
Description
This analyzer has the performance of a high quality spectrum analyzer and the rugged ease of use expected in a field instrument.
It gives you a rapid display update rate and state of the art 5ms sweep time that reduces test time and increases throughput.
The phase locked synthesizer adds stability and repeatability to frequency measurements, and the automatic background alignment offers continuous calibration.
Plus, you'll have specified performance only 5 minutes after power up.
Increase your manufacturing up time: costly repairs can be avoided with the automatic input overload protection, and the use of component integration reduces the probability of failure.
Key Points
External, Internal Trigger Source
AM Demodulation
Mainframe Form Factor
Economical and portable
Rugged packaging and construction
Easy to use
15.8 cm, high resolution, LCD display
Continuous background environment alignment
Specifications
Input Impedance: 50Mohms
Frequency Range: 9KHz to 1.5GHz
Frequency Accuracy: 0.0000000002 %
Minimum Resolution Bandwidth: 1Hz
Maximum Resolution Bandwidth: 3MHz
Video Bandwidth Range: 30Hz to 1MHz
Maximum Safe AC Input: 1dBm
Maximum DC Input : 100V
