Agilent / HP 85050D
Calibration Kit 7mm 18GHz
Description

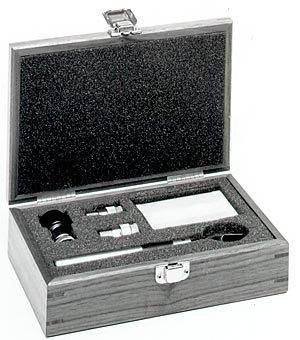

The Calibration Kit contains precision calibration standard devices to characterize the systematic errors of Agilent network analyzers in the 7mm interface.
This kit also contains a torque wrench for proper connection.
Included are standards definitions on disk.
Connector gages may be ordered separately.
Key Points
DC to 18GHz frequency range
Calibration standards to perform full two port calibration
Torque wrenches for properly connecting standards
Standard definitions on disk for loading into network analyzer
Specifications
SWR: 1.1 to 1.5 typically
Frequency range: DC to 18GHz
Impedance: 50ohms
Repeatability: 0.3dB
