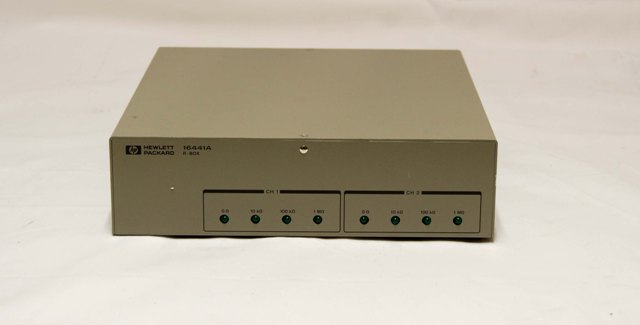

Agilent / HP 16441A
R Box
Description
This Resistance Box value is automatically compensated for by the 4155/4156.
So, the data displayed on the GRAPH/LIST screen of the 4155/4156 or data used for user function is the compensated data.
If you connect the R Box to SMUs other than described above, resistance values are not compensated for automatically.
Key Points
Maximum voltage 200V
Maximum current is 1A
50% of relative humidity
Specifications
Humidity: 50%
Operating temperature: 5°C to 40°C
Storage temperature: 40°C to 60°C
Weight: 1.6kg
