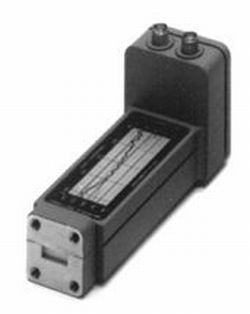

Agilent / HP 11970K
Waveguide Harmonic Mixer
Description
The waveguide mixer is a general purpose harmonic mixer employing a dual diode design to achieve flat frequency response and low conversion loss.
These are achieved without external DC bias or tuning stubs.
Manual operation and computer controlled hardware operation are simplified because mixer bias and tuning adjustment are not required.
Key Points
Flat frequency response
Low conversion loss
No bias or tuning adjustments
100mW safe input level
Specifications
Frequency: 18GHz
Safe input level: 100mW
